IE4 and IE5 motors
Low and medium voltage motors from 0.75 kW to 5 MW, built in Jebel Ali, Dammam and Sohar and load-tested before they ship.
Overview
Two ranges cover almost every duty. The NA-series is a rugged IE4 induction motor in a cast-iron frame, the safe choice for direct-on-line pumps, fans and conveyors. The NX-series uses a permanent-magnet rotor to reach IE5, the highest efficiency class in IEC 60034-30-1, and runs on a variable speed drive.
Both share the same frame sizes and mounting dimensions as standard IEC motors, so they drop into existing bases without new steelwork. Hazardous area (ATEX and IECEx), marine (DNV) and washdown versions are built on the same lines.

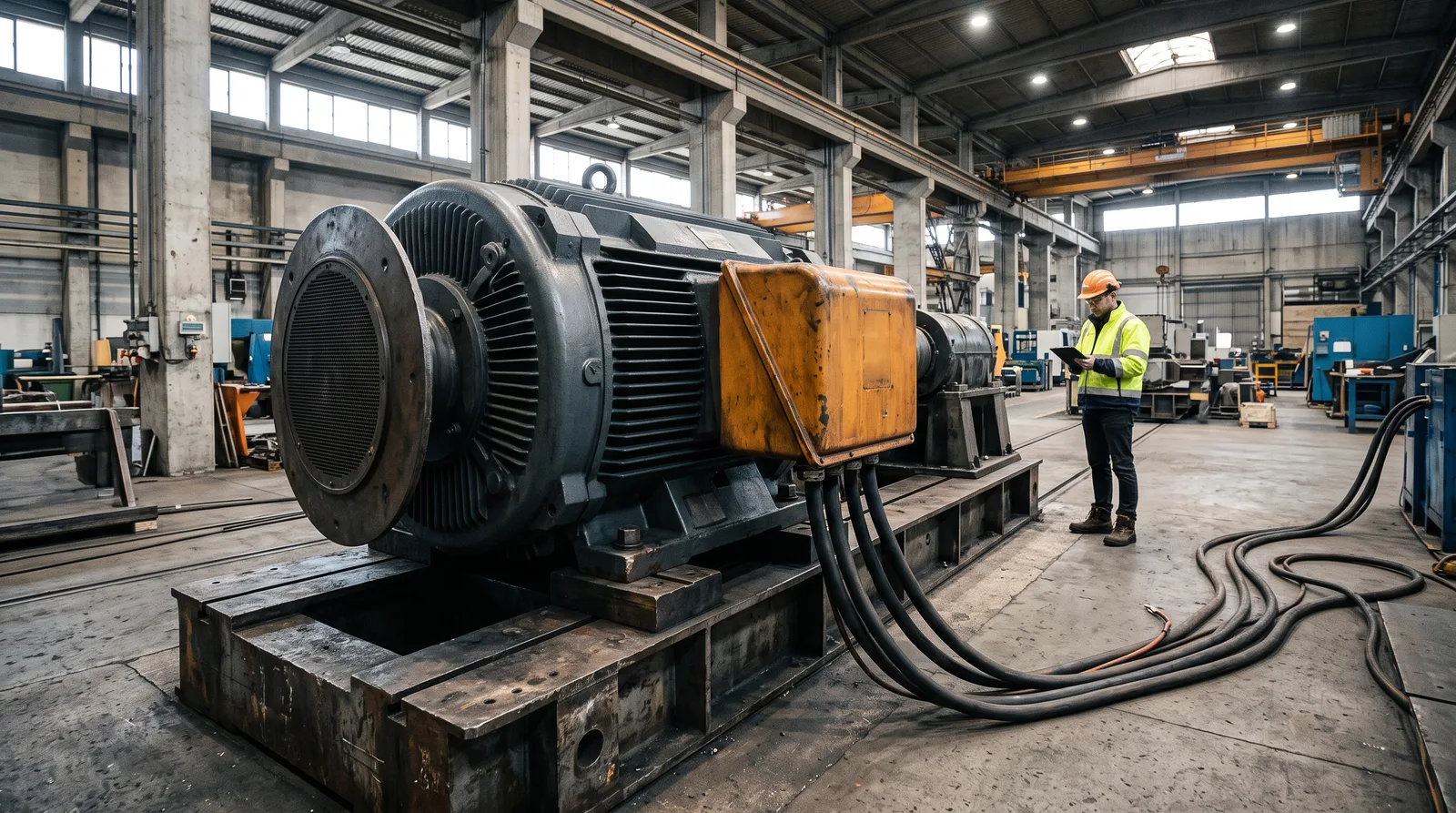

Every motor is routine-tested before it leaves the factory, and motors above 200 kW get a full-load heat run on our test bay. You’re welcome to witness it.
Key figures
- Largest motor
- 5 MW
- From 0.75 kW, in 47 frame and pole combinations
- Peak efficiency
- 97.6%
- NX-series IE5 at 1,000 kW, 4-pole
- Lower losses
- 30%
- NX IE5 against a typical IE3 motor
- Highest voltage
- 11 kV
- Medium voltage from 3.3 kV
Specifications
Standard data. Most options can be combined, and the quote confirms the exact build.
| NA-series IE4 Induction | NX-series IE5 Permanent magnet | |
|---|---|---|
| Power range | 0.75 kW to 1,600 kW | 11 kW to 5 MW |
| Voltage | 400–690 V; 3.3–11 kV from 250 kW | 400–690 V; 3.3–11 kV from 315 kW |
| Efficiency class | IE4 (IEC 60034-30-1) | IE5 (IEC TS 60034-30-2) |
| Frame sizes | IEC 80 to 500 | IEC 132 to 630 |
| Enclosure | IP55, IP66 option | IP55, IP66 option |
| Cooling | IC411, IC416, IC611 | IC411, IC416, IC81W water jacket |
| Insulation | Class F, class B rise | Class F, class B rise |
| Starting | Direct on line, soft starter or VSD | Variable speed drive only |
| Hazardous areas | Ex db, Ex ec, Ex tb | Ex ec, Ex tb |
| Marine approval | Yes | Yes |
| Lead time | 2–6 weeks; stock up to 75 kW | 6–14 weeks |
Efficiency figures to IEC 60034-2-1 at rated load. Full data sheets on request.
Request a quote
Documents on request
Every document is issued by an application engineer for your exact motor, so it’s sent on request rather than downloaded. Ask in your quote request or email sales@norvikdrives.ae and you’ll have it within one working day.
-
Data sheet
Rated data, efficiency at 25, 50, 75 and 100% load, and noise for the exact motor quoted.
-
Dimension drawing
General arrangement with fixing and shaft dimensions, as PDF, DXF or a STEP model.
-
Installation and maintenance manual
Lifting, alignment, first start, greasing intervals and storage.
-
Declarations of conformity
CE declarations and UAE and Saudi conformity certificates (ECAS and SASO, demo), plus ATEX or IECEx certificates for hazardous area motors.
-
Test certificate
Routine or type test results for your serial number, issued when the motor ships.
Questions about motors
Should I choose IE4 or IE5?
If the motor runs most of the year on a variable speed drive, IE5 usually pays back its extra cost within two to three years. For direct-on-line duties, or motors that run a few hours a day, IE4 is normally the better buy. We’ll run both through your duty cycle and show you the numbers.
Will a Norvik motor fit my existing base?
Yes, in almost every case. Both ranges use standard IEC frame sizes and shaft heights. Send us the nameplate of the motor you’re replacing and we’ll confirm.
Can I witness the test?
Yes. Witness tests are free for motors above 200 kW and booked when you order. For smaller motors we charge AED 1,800 per test session.
What warranty do you give?
Three years from delivery on NA and NX motors, extended to five years with a Norvik service agreement.
Send us the duty
Power, speed, voltage and the load it drives. An application engineer replies within one working day with a selection and a price.
